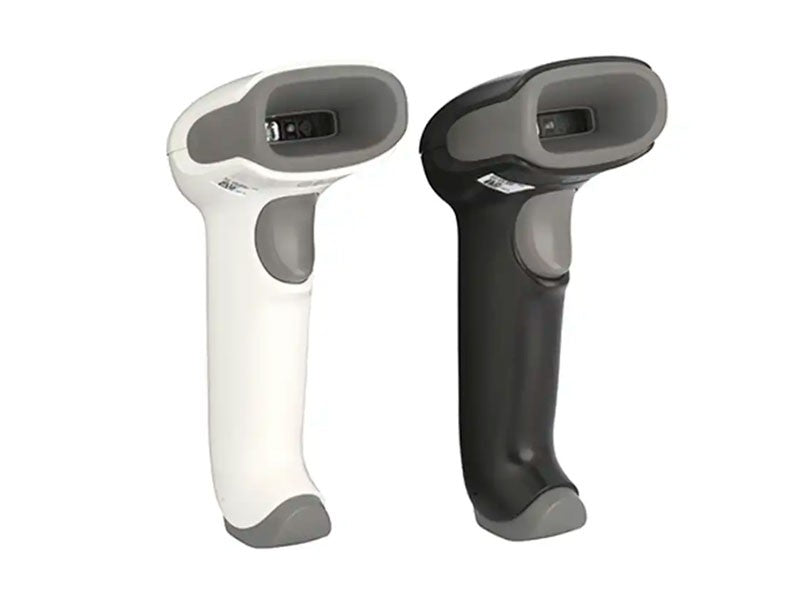

Voyager XP 1472g - Cordless 2D Imager, USB Kit, black

The Voyager™ Extreme Performance (XP) 1472g wireless scanner is designed for retail environments requiring a highly accurate scanning solution in a durable form factor. It offers industry-leading scanning capabilities for traditional barcodes and digital screens—even damaged and hard-to-read codes.
The Voyager XP 1472g scanner is the perfect option for workflows that include reading 1D and 2D barcodes and require a more robust and reliable solution. The Voyager XP 1472g scanner combines additional durability and improved scanning capabilities at the same competitive price as its predecessor. The scanner's extended scanning distance reaches to the bottom of the cart, eliminating the need to bend and lose time at the checkout.
Based on Honeywell's legendary Voyager series handheld scanners, the Voyager XP 1472g scanner is fully backward compatible with existing Voyager accessories, reducing total cost of ownership.



Special features
- Highly accurate scanning
- Durable
- Robust and reliable
- Extended scanning distance
- Fully backward compatible



Application area
- Retail
- Restaurants



Technical specifications

Physical Characteristics
- Dimensions (L x W x H): 62 x 173 x 82mm
- Weight: 210g

Scan Performance
- Scan Pattern: Area image (1040 x 720 pixel array)
- Motion Tolerance: 70cm/s for 13mil UPC at optimal focus
- Scan Angle: Horizontal: 39.2° nominal, Vertical: 27.4° nominal
- Roll, Pitch, Skew: +/- 180°, +/- 65°, +/- 70°
- Decoding Capabilities: Reads standard 1D, PDF, 2D, and DotCode symbologies (depending on scanner configuration)
- Interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)

Wireless Communication
- Radio / Range: 2.4 GHz to 2.5 GHz (ISM band), Adaptive Frequency Hopping Bluetooth v4.2 30m line of sight with Honeywell charger / communication base Power Options: Battery: Minimum 2400 mAh Li-Ion Number of Scans: Up to 50,000 scans per charge Expected Operating Time: 14 hours Expected Charge Time: 4.5 hours User Indicators: Good decode LEDs, rear view LEDs, beeper (tone and volume adjustable), vibration (adjustable), charge status indicator

Reliability
- IP Rating: IP42
- Drop Protection: Designed to withstand 30 drops from 1.8m to concrete

Environmental Conditions
- Operating Temperature: 5°C - 40°C
- Storage Temperature: -20°C - 35°C
- Relative Humidity: 0% - 95%, non-condensing
