Honeywell

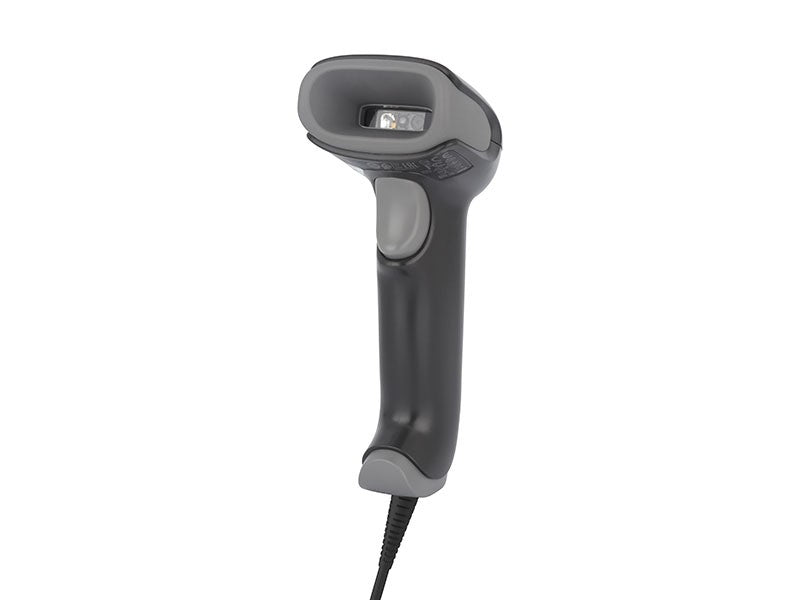

Voyager XP 1470g - Corded 2D Imager, USB Kit, Stand, Black
Voyager XP 1470g - Corded 2D Imager, USB Kit, Stand, Black
Regular price
€92,90 EUR
Regular price
Sale price
€92,90 EUR
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The 1470g Voyager™ Extreme Performance (XP) scanner was developed for retail environments where a high-precision 2D scanning solution with a durable form factor is required. It offers industry-leading scanning capabilities for traditional barcodes and digital screens - even for damaged and difficult-to-read codes.
The Voyager XP 1470g scanner is the perfect option for workflows that include reading 1D and 2D barcodes and require a more robust and reliable solution. The Voyager XP 1470g scanner combines additional durability and better scanning capabilities at the same competitive price as its predecessor. The scanner's extended scanning distance reaches the bottom of the cart without having to bend down and lose time at the checkout.
Based on the platform of Honeywell's legendary Voyager handheld scanners, the Voyager XP 1470g scanner is fully backward compatible with existing Voyager accessories, reducing the total cost of ownership.
Special features
- Fast and accurate scanning
- Improved performance
- Extended scanning distance
- Reduced total cost of ownership
Area of application
- Retail
- Restaurants
Technical specifications
Physical characteristics
- Dimensions (L x W x H): 62 x 169 x 82mm
- Weight: 130g
Scan performance
- Scan pattern: Area image (1040 x 720 pixel array)
- Motion tolerance: 70cm/s for 13mil UPC at optimal focus
- Scan angle: Horizontal: 39.2° nominal, Vertical: 27.4° nominal
- Roll, Pitch, Skew: +/- 180°, +/- 65°, +/- 70°
- Decoding capabilities: Reads standard 1D, PDF, 2D, and DotCode symbologies
- Host system interfaces: USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS485)
Electrical
- Operating power: 2 W (400 mA at 5 V DC)
- Input voltage: 4.0 V DC to 5.5 V DC
- Standby power: 0.45 W (90 mA at 5 V DC)
Reliability
- Protection class: IP40
- Drop protection: Designed to withstand 30 drops from 1.8m to concrete
Environmental conditions
- Operating temperature: 0°C - 50°C
- Storage temperature: -40°C - 70°C
- Relative humidity: 0% - 95%, non-condensing
