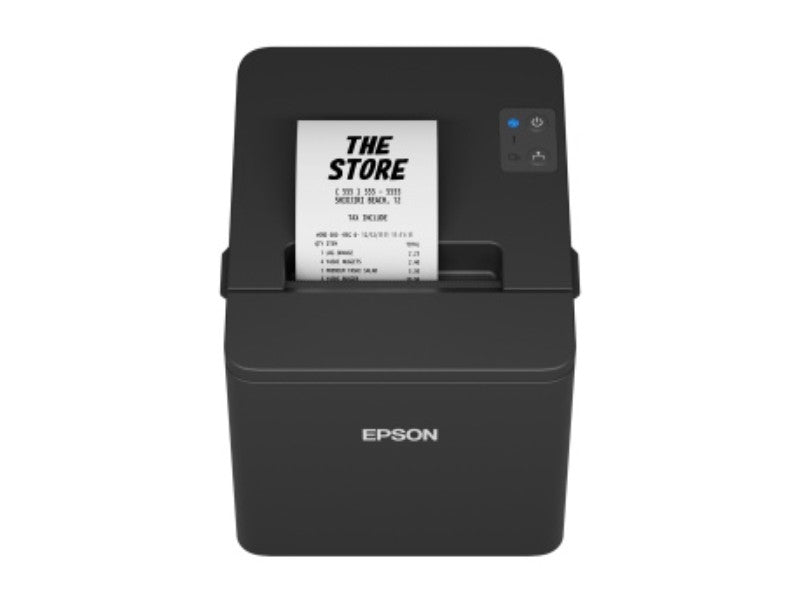

TM-T20IV - Thermal receipt printer with auto-cutter, 80mm, print speed 250mm/sec., USB + RS232, black

The powerful and cost-effective POS printer with versatile connectivity options.


Special features:
– Compact, modern design
– Reliable
– Versatile connectivity options
– Fast printing
– Paper-saving functions
– User-friendly


Areas of application:
- Retail
- Specialist retail
- Grocery stores
- Hospitality


Technical specifications:

Physical features
– Dimensions (W x D x H): 140 x 199 x 146mm
– Weight: 1.7kg

Printer
– Printing method: Thermal line printing
– Print speed: 250 mm/s
– Character size (W x H): 0.08 x 2.13mm and 1.25 x 3.00mm
– Character set: 95 alphanumeric characters, 18 international characters, 128 x 43 graphic characters
– Barcode: UPC-A/E, JAN 13 (EAN 13), JAN 8 (EAN), Code 39/93/128, CODABAR (NW-7), Composite Symbology, GS1-128, GS1 DataBar, ITF
– Interface (two-interface model): USB Type-B, Serial RS-232 D-Sub 25-pin
– Interface (three-interface model): USB Type-B, Serial RS-232 D-Sub 9-pin, Ethernet (10/100Base-T/TX), USB Type-A for peripherals, optional WLAN via OT-WL06 USB adapter dongle (2.4 GHz/5.0 GHz)

Consumables
– Media dimensions: 80mm: 79.5 +/- 0.5 x 83mm, 58mm: 57.5 +/- 0.5 x 83mm
- Thickness: 53 – 75µm

Electrical
- Supply voltage: 24 VDC +/- 7%
- Power consumption: Operation: approx. 27.2 W, Standby: approx. 10 W 0.96 W
- Power supply: AC (100 to 230 V/50 to 60 Hz) (power cable included)

Reliability
- MTBF: 360,000 hours
- MCBF: 60,000,000 lines
- Auto cutter: 2 million cuts

Safety and Compliance
- EMI standards: FCC Class A, ICES-003 Class A
- Safety standards: UL62368-1, CAN/CSA C22.2 No. 62368-1
