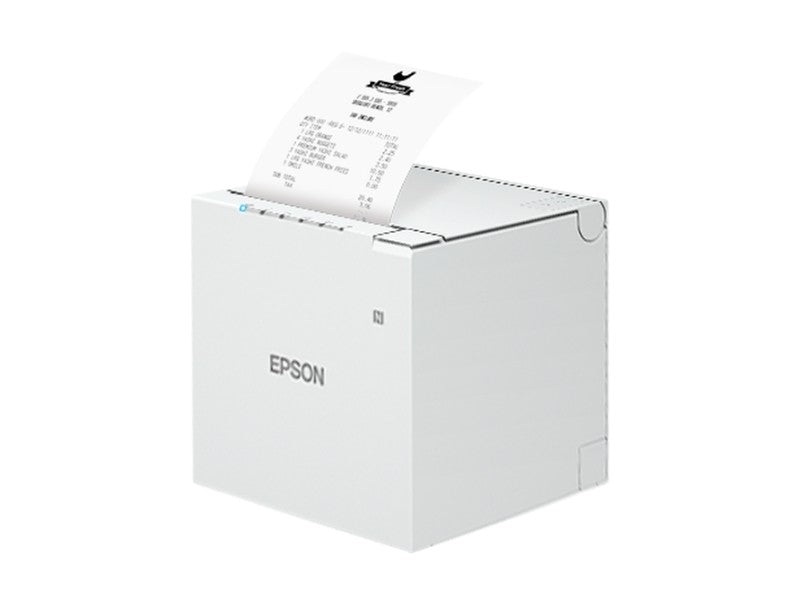

TM-m30III - Receipt thermal printer, 80mm, USB + Ethernet + WLAN + Bluetooth, white

The elegant and modern OmniLink TM-m30III thermal receipt printer was designed to deliver enhanced connectivity and reliable performance in a compact enclosure. Its clean, attractive design offers visual appeal to elevate both your business and the customer experience. The enclosure is IPX2-rated for water resistance, and its small size is ideal for confined spaces. The printer features a flexible configuration, working with either top output or front output.
Equipped with built-in Ethernet, USB-A, USB-B, and USB-C interfaces, plus an optional dual wireless interface supporting Wi-Fi and Bluetooth connectivity, the TM-m30III offers the flexibility to connect to almost any point-of-sale system. It features a USB device hub function that connects up to two devices. You can also print from web-based applications using Epson's ePOS Print technology or leverage Epson Server Direct Print technology for online ordering or remote printing. Additionally, with Sync & Charge and network tethering capabilities, the printer boasts excellent tablet support - via a single USB-C connection, it can charge the tablet with up to 18W while simultaneously providing fast and stable wired network access at up to 20 Mbps. And with innovative paper-saving technology, you can reduce paper consumption by up to 49 percent4. The OmniLink TM-m30III offers versatile performance with modern sensibilities, raising the bar for what a thermal receipt printer can do.


Special Features:
- Modern and compact design
- Versatile connectivity
- Fast print speed
- Easy configuration
- First-class service and support


Application Areas:
- Retail
- Specialist retail
- Point of Sale
- Hospitality


Technical Specifications:

Physical Characteristics
- Dimensions (W x D x H): 127 x 128 x 129 mm
- Weight: 1.3 kg

General
- Printing method: Thermal direct
- Print speed: 300mm/sec.
- Resolution: 203dpi
- Printing direction: Vertical and horizontal
- Paper exit and entry: Top or front
- Receive buffer: 4KB or 45Byte
- Sensors: Paper end, cover open, paper near end

Interface
- Standard model: USB Type-C (USB 2.0, HS/FS/LS, 18W device charging), USB Type-B (USB 2.0 FS), Ethernet (10/100Base-T/TX), USB Type-A peripheral device port x 1
- Wi-Fi + Bluetooth model: USB Type-C (USB 2.0, HS/FS/LS, 18W device charging), USB Type-B (USB 2.0 FS), Ethernet (10/100Base-T/TX), Wi-Fi (802.11 a/b/g/n/ac), Bluetooth (5.0 Dual Mode), USB Type-A peripheral device port x 1

Fonts
- Fonts/Column capacity: Font A: 12 x 24, 48cpl (Standard), Font B: 10 x 24, 57cpl, Font C: 9 x 17, 64cpl, Kanji Font A: 24 x 24, 24cpl, Kanji Font B: 20 x 24, 28cpl (Japanese), 36cpl (Korean)
- Character size: Font A: 1.25 x 3.00mm, Font B: 1.13 x 3.00mm, Font C: 0.88 x 2.13mm, Kanji Font A: 2.50 x 3.00mm, Kanji Font B: 2.26 x 3.00mm
- Character set: 95 Alphanumeric, 18 International, 128 x 43 Graphic, Japanese (11,233 characters from JIS X0213:2004, 1 special character), Simplified Chinese (28,553 characters from GB18030-2000), Traditional Chinese (13,535 characters from Big5), Korean (8,224 characters from KSC5601)
- Barcode: UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar, Code 128 Auto
- 2D Barcode: PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, two-dimensional GS1 DataBar, composite symbology

Media Handling
- Media dimensions: 80mm: 79.5 +/- 0.5 x 83mm, 3.13" +/- 0.02" (width) x 3.27" (roll diameter), 58mm: 57.5 +/- 0.5 x 83mm, 2.26" +/- 0.02" (width) x 3.27" (roll diameter)
- Thickness: 48μm - 80μm
- Type: Thermal roll paper
- Paper feed method: Friction feed
- Paper retraction: Yes
- Width: 79.5mm
- Paper loading: Drop-in
- Roll diameter: Max. 83mm
- Core diameter: Min. 18mm
- Paper guide: 80mm (standard), 58mm spacer included
- Auto-Cutter: Partial cut (standard) or full cut

Electrical
- Power consumption: Operating 30.6W, Standby 1.4W
- Power source: Adapter PS-190
- Power saving: Yes

Reliability
- Printer reliability: 17 million print lines
- MTBF: 360,000 hours
- MCBF: 65,000,000 lines
- Auto-Cutter reliability: 2.2 million cuts

Environmental Conditions
- Operating temperature: 5°C - 45°C
- Humidity: 10% - 90%

Standards and Approvals
- EMI FCC Class A, ICES-003 Class A
- Safety Standard UL62368-1/CSA C22.2 No. 62368-1
