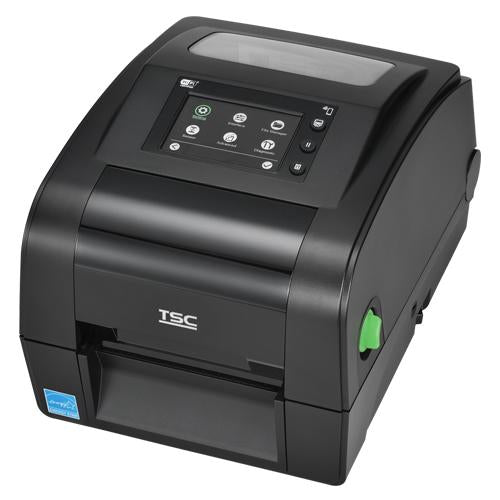

TH340T - Label printer, thermal transfer, 300dpi, USB + RS232 + Ethernet, 3.5"-LCD color touchscreen, black

The versatile and flexible 2-inch and 4-inch desktop barcode printers of the TH DH series meet a wide range of printing requirements. Thanks to the versatility of this series, a wide spectrum of challenging labels such as thick, small, and long labels, as well as various types of special labels for vertical market applications, can be printed.
Printer language emulation is supported plug-and-play by our TH DH series. The printer firmware automatically recognizes key printer languages and immediately starts printing without requiring any changes to label templates. With comprehensive printer management tools (built-in internal web page, virtual control panel, TSC Console, and SOTI Connect), the TH DH series minimizes downtime in daily printing operations. It also offers outage prevention and supports network security configurations for efficient printer management.
As the TH DH series handles a wide variety of printing materials, prints with high precision, and offers numerous options, applications can be easily scaled. This allows businesses to adapt to changing requirements in current and future printing operations. The packaging and plastic casing of this environmentally friendly printer are 100% recyclable. More than 90% of the printer components are recyclable at the end of the product lifecycle, reducing environmental impact.


Features:
- Seamless Integration
- Product Identification
- Versatility
- Future-proof Print Quality
- Ecologically Sustainable
- Tailored Design


Applications
- Retail
- Transport & Logistics
- Healthcare
- Care Labeling
- Product Identification


Technical Specifications:

Physical Characteristics
- Dimensions (W x H x D): 223 x 186 x 286mm
- Weight: 2.8kg

General
- Printing Method: Thermal Transfer and Direct Thermal
- Resolution: 300dpi
- Casing: Double-walled clamshell design
- Print Speed: 152mm/sec.
- Print Width: max. 105.7mm
- Print Length: max. 11,430mm
- Processor: 32-bit RISC CPU
- Memory: 128 MB Flash Memory, 128 MB SDRAM, microSD card reader for memory expansion, max. 512 GB, FAT32 and exFAT only
- Interfaces: USB 2.0, RS-232, USB Host, Internal Ethernet, 10/100 Mbit/s, 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module (option from dealer), Bluetooth 5.0 (option from dealer), MFi Bluetooth 5.0 (option from factory)
- Controls: 1 power switch, 1 feed button, 1 pause button, 1 reprint button, 3.5" LCD color touchscreen (480x320 pixels)
- Sensors: Transmissive gap sensor, Adjustable reflective black mark sensor, Printhead open sensor

Barcodes
- 1D Barcode: Code 39, Code 93, Code128UCC, Code128 Subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digit extension, MSI, PLESSEY, POSTNET, China Post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
- 2D Barcode: TLC39, CODABLOCK F Mode, PDF-417, Maxicode, DataMatrix, QR Code, Aztec, Micro PDF 417, GS1 DataBar (RSS Barcode)

Electrical
- External universal switching power supply
- Input: AC 100-240 V, 2.0A, 50-60 Hz
- Output: DC 24 V, 3.75 A, 90W

Media
- Media Type: Continuous, die-cut, black mark, fan-fold, notched (outer wound)
- Label Roll Outer Diameter: 127mm
- Media Width: 15 - 120mm
- Media Thickness: 0.06 - 0.19mm
- Media Core Diameter: 25.4 - 38.1mm
- Label Length: 5 - 11,430mm
- Ribbon: 300m long, max. outer diameter 67mm, 1" core (coating out), 110m long, max. outer diameter 40mm, 0.5" core (coating out)
- Ribbon Width: 40-110mm

Environmental Conditions
- Operating Temperature: 0°C - 40°C
- Storage Temperature: -40°C - 60°C
- Humidity: 25% - 85% (operating), 10% - 90% (storage), non-condensing

Safety & Compliance
- Safety Regulations: CB, FCC Class B, IC, CTÜVUS, NOM, CE Class B, UKCA, EAC, CCC, RCM, BSMI, Energy Star 3.
- Environmental Requirements: RoHS compliant, REACH, WEEE, China RoHS
