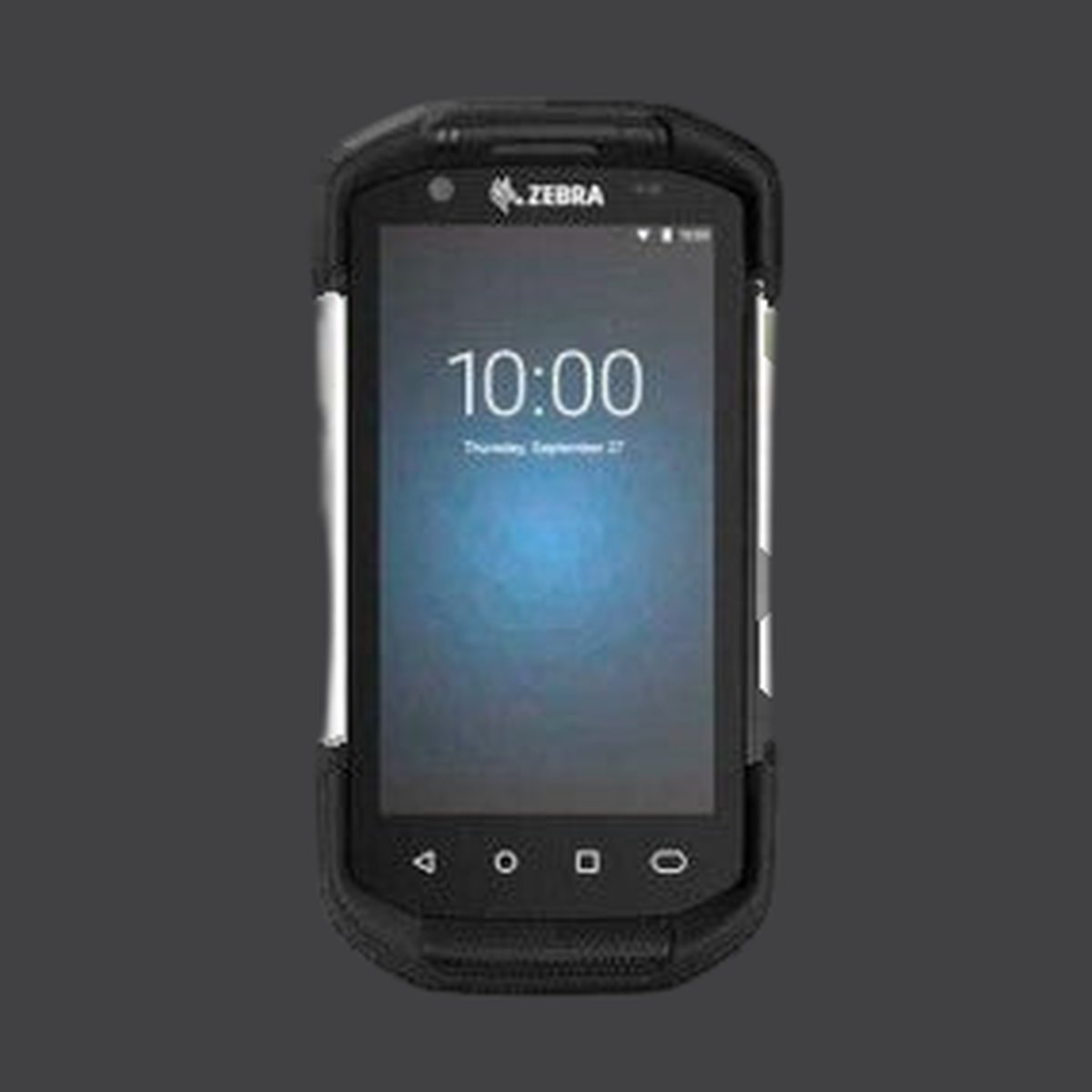

TC72 - Mobile Touch Computer, 2D Imager, Android 8.1, WLAN, NFC, Bluetooth, GMS, Cameras, 4.7" Display

At the forefront of your company are your customer-facing employees, who deal with the most important element of your business every day – your customers. Now there are devices that allow you to set new standards in customer service by ensuring maximum efficiency combined with absolute reliability for everything your employees need – the TC72 and TC77 Android touch computers. This product family builds on the extremely successful TC7 series and offers the ultimate comprehensive touch computer for all indoor and outdoor employees – an uncomplicated smartphone user experience, a design that can withstand years of continuous use in harsh environments, and a new platform that offers more possibilities than any other device in its class. The TC72 and TC77 – for a true competitive advantage at the forefront.



Features:
- Reliable power supply throughout the entire shift
- Extremely high-resolution photos and videos
- Bluetooth 5.0 for double speed and four times the range
- The ultimate user experience
- Broad support for location functions



Applications:
- Retail
- Manufacturing
- Transport and logistics
- Warehouse



Technical specifications:

Physical Characteristics
- Dimensions (L x W x D): 161 x 84 x 28mm
- Weight: 376g

General
- Display: 4.7", high-resolution (1280 x 720), extra bright, outdoor readable, optically bonded with touchscreen
- Imager Window: Corning Gorilla Glass
- Touchscreen: dual mode capacitive for stylus or finger input with and without gloves, conductive stylus sold separately, screen protector and rain options, Corning Gorilla Glass
- Backlight: LED
- Power Supply: Lithium-ion battery 3.7 V, 4620 mAh PowerPrecision/PowerPrecision+: enhanced battery technology for longer cycle times and real-time display of battery metrics for better battery management
- Expansion Slot: user-accessible MicroSD, up to 32 GB SDHC and up to 256 GB SDXC
- SIM (TC77 only): Dual SIM Dual Standby, 1 eSIM provisioned, 1 nano-SIM
- Notification: audible tone, multi-color LEDs, vibration
- Keyboard: on-screen keyboard and Enterprise Keyboard
- Voice and Audio: three-microphone support with noise cancellation, vibrator, speaker, wireless Bluetooth headset support, high-quality speakerphone, PTT headset support, circuit-switched cellular calls, HD Voice

Performance Characteristics
- CPU: Qualcomm Snapdragon™ 660 Octa-Core, 2.2 GHz
- Operating System: Android 8.1
- Memory: 4 GB RAM/32 GB Flash
- Internet Protocol: IPv4 and IPv6

Data Capture
- Scanning: SE4750 Imager (1D and 2D), excellent range: scan range – Code 39 barcodes: 0.51mm: 4.1cm to 92.2cm, 0.08mm: 7.1cm to 15.9cm, Digimarc symbol set support
- Camera: Front – 5 MP, fixed focus, Rear – 13 MP, autofocus, aperture 1:2.4, LED flash creates balanced white light, flashlight mode support, 4K video with image stabilizer, camera with barcode scanning support
- NFC: ISO 14443 Type A and B, F, FeliCa and ISO 15693 cards, P2P mode and card emulation via host SAM support for Calypso, Felica® and MIFARE® technology, TC77 only: Dual SAM support on TC77 SAM SKU

Interactive Sensor Technology
- Light Sensor: automatic display brightness adjustment
- Motion Sensor: eCompass, 3-axis gyroscope, 3-axis accelerometer
- Barometric Pressure Sensor: TC77 only

Audio
- High-quality speakerphone with up to 108 dB volume, support for wireless headsets (Bluetooth) and PTT headsets4, handset/speakerphone mode

WLAN
- Radio Module: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w, Wi-Fi™ certified, IPv4, IPv6, 2x2 MU-MIMO
- Data Rates: 5GHz 802.11a/n/ac – up to 866.7 Mbps, 2.4 GHz 802.11b/g/n – up to 300 Mbps
- Operating Channels: Channels 1–13 (2412–2472 MHz), Channels 36–165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz. Actual operating channels/frequencies and bandwidths are subject to applicable regulations and certification authorities
- Security and Encryption: WEP (40- or 104-bit), WPA/WPA2 Personal (TKIP, and AES), WPA/WPA2 Enterprise (TKIP and AES)– EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD
- Multimedia: Wi-Fi Multimedia™ (WMM) and WMM-PS
- Features: Soft AP, 2x2 MU-MIMO, 256-QAM modulation at 5 GHz frequency, Maximum Ratio Combining (MRC), Tx/Rx Low-Density Parity Check (LDPC), Transmit Beamforming (TxBF) and Beamformee (BFee) functionality, comprehensive legacy compatibility with IEEE 802.11 a/b/g/n
- Certifications: WFA (802.11n, WMM-PS, 801.11ac, PMF)
- Fast Roaming: PMKID Caching, Cisco CCKM, 802.11r, OKC

WPAN
- Class 2, Bluetooth 5.0, Bluetooth Low Energy (BLE)

WWAN (TC77 only)
- Radio Frequency Band: VoLTE support, carrier aggregation up to 3DL CA LTE FDD: 700/800/850/900/1800/1900/ AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2.25 /4.66/1/7), LTE TDD: 1900/2300/2500 (39/40/41,38), UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1), GSM/GPRS/EDGE: 850/900/1800/1900
- GPS: autonomous, Assisted-GPS (A-GPS), Navstar, GLONASS, Galileo, BeiDou

Reliability
- Drop Resistance: multiple drops to concrete from 1.8m height across the entire operating temperature range, multiple drops from 2.4m height to concrete at room temperature according to MIL-STD 810G
- Tumble Specification: 2,000 tumbles from 1.0m height, meets and exceeds IEC tumble specifications
- Vibration: 4g PK sine (5 Hz to 2 kHz), 0.04 g2/Hz random (20 Hz to 2 kHz), 60 minutes per axis, 3 axes
- Sealing: IP67 and IP65 according to applicable IEC sealing specifications

Environmental Conditions
- Operating Temperature: -20°C - 50°C
- Storage Temperature: -40°C - 70°C
- Humidity: 5% - 90%, non-condensing
- Temperature Shock: -40°C - 70°C rapid transition
- ESD: +/- 15 kV air discharge, +/- 8 kV direct discharge, +/- 8 kV indirect discharge
