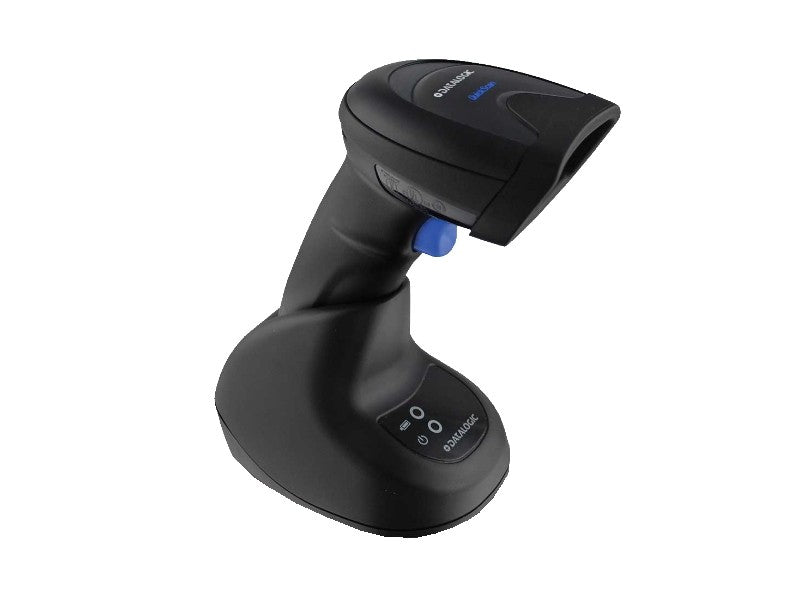

QuickScan QBT2500 - Cordless Barcode Scanner, 2D Imager, Bluetooth, USB Kit, black

The market trend towards 2D barcodes has become established throughout the data capture industry. This is especially true in retail, where there is an increased need for 2D scanning at POS checkouts and reliance on reading cell phone displays and customer cards.
The QuickScan 2500 2D imager is your reliable companion at the POS checkout. It reads quickly and reliably, regardless of whether the barcode is difficult to read, poorly printed or damaged. The QuickScan 2500 scans mobile devices and through plexiglass barriers without problems, and at the same time convinces with its attractive price.
The operator can always clearly see where the scanner is pointing, allowing for high-precision work. The QW model has an intuitive blue dot, while the QD, QM, and QBT models offer an excellent aiming device consisting of two blue, sharply defined triangles. Datalogic's "Green Spot" technology then confirms the correct reading, perfectly centered on the barcode and between the two triangles, supported by a powerful configurable beep. The soft red illumination reduces overall operator eye fatigue.
The QuickScan 2500 features narrow-band radio communication with Datalogic's STAR Cordless System (QM models) or Bluetooth wireless technology (QBT models). This provides a choice to ensure delivery even in times of scarce Bluetooth microchips. STAR radio enables interference-free communication with low sensitivity to interference sources. This avoids delays and increases productivity, especially in high-traffic environments where Bluetooth and Wi-Fi are used. The QuickScan 2500 series features the distinctive design of Datalogic handheld scanners and offers a variety of stands and accessories that integrate optimally into any store environment.


Special features
- Cost-efficient with superior performance
- Fastest response at POS check-out
- Maximum precision
- Interference-free communication


Areas of application
- Retail
- Point of Sale
- Commercial services
- Hospitality
- Lottery and gambling
- Light industry


Technical specifications

Physical characteristics
- Dimensions (H x L x W): 159 x 68 x 107mm
- Weight: 206.5g

General
- Image capture: Graphic formats: BMP, JPEG, TIFF, grayscale: 256, 16, 2
- Image sensor: QD2500, QM2500, QBT2500: 1 megapixel (1280 x 800 pixels), QW2500: VGA (640 x 480 pixels)
- Light source: Aiming: Blue LED emission 468nm, Illumination: Red LED emission 617nm
- Motion tolerance: 30 IPS
- Print contrast ratio (min.): QD2500, QM2500, QBT2500: at least 15%, QW2500: min. 15% with special configuration
- Reading angle: Tilt: +/- 65°, Pitch: 360°, Skew (Yaw): +/- 65°
- Read confirmations: Beeper (adjustable tone and volume), Datalogic's 'Green Spot' technology as visual read feedback on the code, Good-Read LED
- Resolution (max.): QD2500, QM2500, QBT2500: 1D Linear: 0.077mm, PDF417: 0.077mm, Data Matrix: 0.127mm, QR Code: 0.17mm, QW2500: 1D Linear: 0.077mm, PDF417: 0.127mm, Data Matrix: 0.152mm, QR Code: 0.17mm
- Interface: wireless models: BC2090: USB Type C / USB / RS232 / Keyboard Wedge Multi-Interface, wired models: QD2590: USB Type C / USB / RS-232 / Keyboard Wedge Multi-Interface, QW2520, QD2520: USB Type C / USB only

Wireless communication
- QuickScan QM2500: Datalogic STAR Cordless System (Effective radio power: 433.92MHz, point-to-point configuration, radio frequency: 433.92MHz, 910 MHz, two-way communication, radio range (open air): 30m)
- QuickScan QBT2500: Bluetooth wireless technology (Profiles: SPP (Serial Port Profile), Protocol: Bluetooth 4.0 Certified Class 1, Radio frequency: 2.4 GHz, Radio range (open air): 50m. Range is measured with the base station. Range when connected to other Bluetooth peripherals may differ from results. Security: data encryption, scanner authentication)


Decoding
- 1D Linear: automatic detection of all standard linear codes and linear GS1 DataBar codes
- 2D Codes: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code
- Post Codes: Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
- Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
- Digital Watermarks: Digimarc Barcodes (QD2500, QM2500, QBT2500 only)

Electrical
- Battery: Battery type: Lithium-Ion: 3250mAh, Charging time (scanner only): Type-C External power supply: 3 hours, Charging time (via charging station): External power supply: 4 hours at 12 VDC, Scans per charge: 115,000
- Charging station indicator LEDs: Battery charging (blinking orange or green), Charging complete (solid green)
- Power consumption: Charging (typical): Scanner only: 500mA @ 3.7V (ready for operation), charging station only (BC2090): 45mA @ 5V (ready for operation)
- Input voltage: 5V+/-5% (scanner) in Type-C port, 4.5 - 14 VDC +/- 5% (charging station BC2090)

Reliability
- Protection class: IP52
- Drop resistance: withstands multiple drops from 1.5m height onto concrete

Environmental conditions
- Operating temperature: 0°C - 50°C
- Storage temperature: -40°C - 70°C
- Humidity: 0 - 95%, non-condensing
- Light intensity: 0 - 110,000 Lux

Safety & Certification
- Official approvals: the product meets the required safety and regulatory approvals for its intended use. A complete list of certifications can be found in the 'Regulatory Addendum' for this product.
- Environmental compliance: complies with Chinese RoHS directive, complies with EU RoHS directive
- LED classification: Illuminator Exempt group, Aiming Risk Group 1 according to IEC 62471
