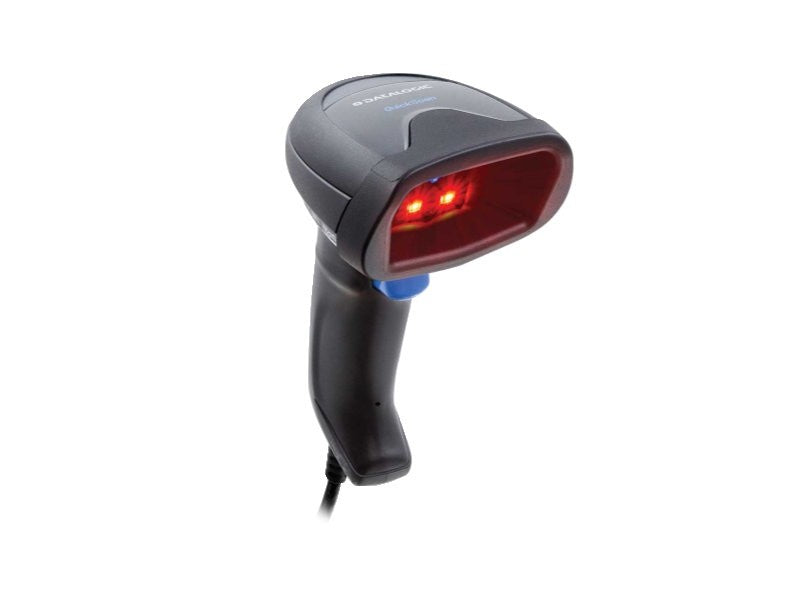

Quickscan Lite QW2520 - 2D imager, USB kit (straight cable, approx. 2m), black

The market trend towards 2D barcodes has clearly spread throughout the entire data capture industry. This is especially true for retailers, where POS checkout activities require increased 2D scanning while also relying on reading from mobile displays and loyalty cards.
The QuickScan 2500 2D imager is your reliable companion at the checkout. It knows very well the importance of quick reading, regardless of the barcode, whether it is difficult to read, poorly printed, or damaged. It easily scans mobile devices and through plexiglass barriers at an incredibly affordable price.
Datalogic's "Green Spot" technology confirms a good read, perfectly centered on the barcode and between the two triangles, supported by a powerful beeper that can be adjusted to your preferred volume. Overall, the gentle red illumination reduces operator eye strain.
Whenever the operator picks up the device, it automatically switches to "handheld mode" for manual reading, thanks to Datalogic's advanced Motionix motion-sensing technology. The QD2500 model and its auto-sense capability then offer a seamless transition into presentation mode.
With the distinctive design and family feel of Datalogic's universal offering of handheld scanners, the QuickScan 2500 series offers a choice from a variety of stands and accessories that integrate optimally into any store environment.


Special Features:
- Imaging Technology
- Extreme Precision
- State-of-the-art Design and Functions


Areas of Application
- Retail
- Manufacturing
- Commercial Services
- Government
- Hotels


Technical Specifications:

Physical Characteristics
- Dimensions: 148 x 68 x 126mm
- Weight: 145g

General
- Image Capture: Graphic Formats: BMP, JPEG, TIFF, Grayscale: 256, 16, 2
- Image Sensor: VGA (640 x 480 pixels)
- Light Source: Aiming: Blue LED Emission 468 nm, Illumination: Red LED Emission 624 nm
- Motion Tolerance: 30 IPS
- Print Contrast Ratio: min. 15% with specific configuration
- Read Angle: Pitch +/- 65°, Roll (Tilt) 360°, Skew (Yaw) +/- 65°
- Read Indicators: Beeper (adjustable tone and volume), Datalogic ‘Green Spot’ Good Read Feedback on Code, Good Read LED
- Interface: USB

Decoding
- 1D / Linear Codes: Automatically discriminates all standard 1D codes, including linear GS1 DataBar codes
- 2D Codes: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code
- Postal Codes: Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
- Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
- Digital Watermarks: Digimarc barcodes

Electrical
- Power Consumption Operating: < 400 mA @ 5V
- Power Consumption Standby: < 90 mA @ 5V
- Input Voltage: 5VDC

Reliability
- Protection Class: IP52
- Drop Resistance: withstands repeated drops from 1.5m height onto a concrete surface

Environmental Conditions
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -40°C to +70°C
- Relative Humidity: 0% - 95% (non-condensing)
- Ambient Light: 0 - 110000 Lux
- ESD Protection: 16 kV

Safety and Certification
- Regulatory Approvals: The product meets the necessary safety and regulatory approvals for its intended use. A complete list of certifications can be found in the Quick Start Guide for this product.
- Environmental Compliance: conforms to China RoHS, EU RoHS
- LED Classification: Illuminator Exempt group, Aiming Risk Group 1 according to IEC 62471
