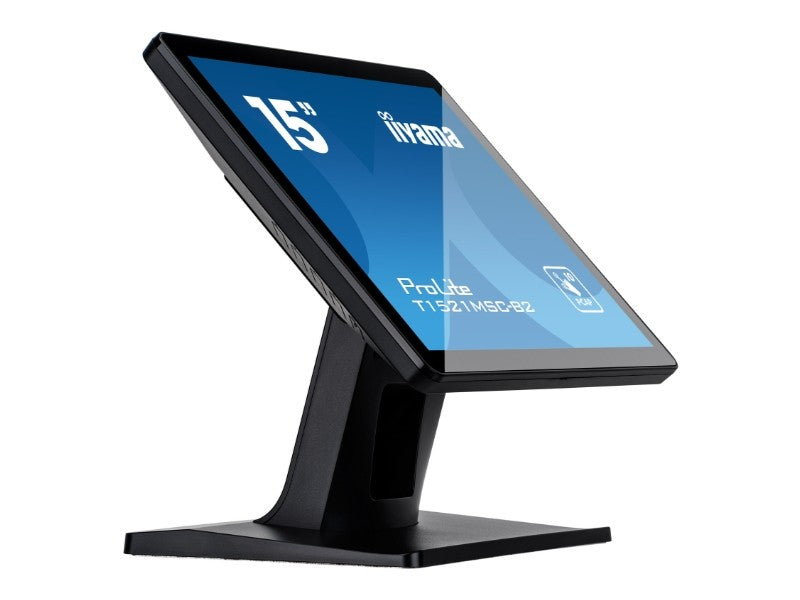

ProLite T1521MSC-B2 - 15" Touchmonitor, capacitive, 10-point multitouch, USB, black

The 15-inch ProLite T1521MSC-B2 multitouch monitor uses Projected Capacitive Touch technology, which guarantees maximum durability, shock and scratch resistance, and perfect image quality thanks to a special glass coating. The robust stand allows for stable positioning of the touchscreen, which can be adjusted by 70 degrees for flexible use. The controls are located on the back and can be deactivated to prevent misuse or to facilitate cleaning of the touch surface. The ProLite T1521MSC-B2 offers a high-performance touch solution and is ideal for use in retail.


Features
- Capacitive touch technology
- Scratch resistance
- High durability
- Perfect image quality


Area of application
- Production
- Trade fairs
- Retail
- Hospitality
- Events



Technical specifications

Physical characteristics
- Dimensions (W x H x D): 340.5 x 308 x 198 mm
- Weight: 3.5 kg

General
- Touchscreen technology: Projective capacitive
- Touchpoints: 10 (HID, with supported OS only)
- Touch method: Stylus, finger, glove (latex)
- Touch interface: USB
- OSD menu languages: EN, DE, FR, ES, IT, RU, JP, NL
- Control buttons: Menu, Up / Left / Auto adjustment, Down / Right, Return / Exit, Power

Display
- Design: Edge-to-edge glass
- Diagonal: 15", 38cm
- Panel technology: TN LED
- Native resolution: 1024 x 768 (0.8 megapixel)
- Aspect ratio: 4:3
- Brightness: 370 cd/m² typical
- Brightness: 325 cd/m² with touch
- Static contrast: 800:1 typical
- Light transmittance: 88%
- Response time: 8ms
- Viewing zone: horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
- Colour support: 16.7 ml 8-bit (6-bit + Hi-FRC)
- Horizontal synchronization: 31.4 - 60 kHz
- Vertical synchronization: 56 - 75 Hz
- Viewable area (W x H): 304 x 228mm, 12 x 9"
- Pixel pitch: 0.297 mm
- Bezel colour and finish: black, matte

Interfaces & connectors
- Analog signal input: VGA x1
- Digital signal input: HDMI x 1
- Audio output: Speakers 2 x 2W

Power supply
- Power supply: external
- Power supply: DC 12V
- Power consumption: 16 W typical, 1.5 W standby, 0.5 W off mode

Reliability
- Protection class: IPX3 (front)
