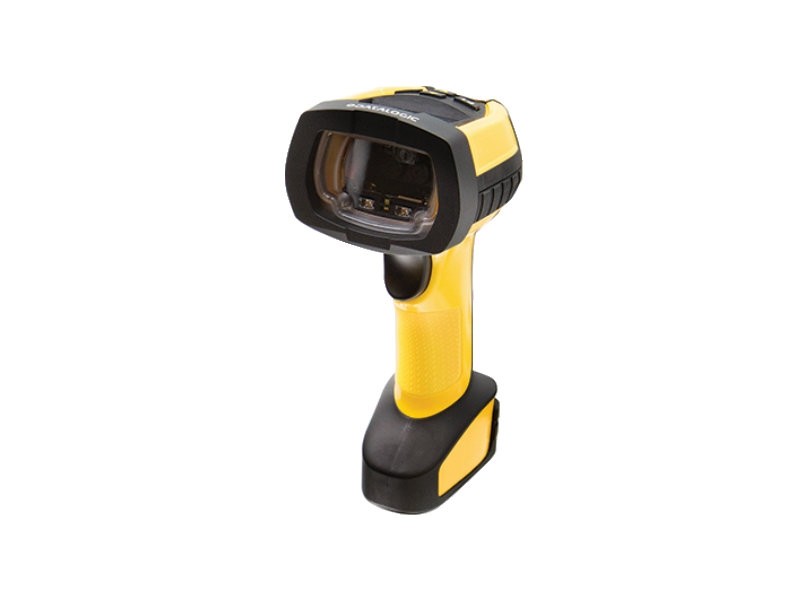

PowerScan PM9600-SR - Cordless 2D Barcode Scanner, Standard Range

The PowerScan family of barcode readers are the ultimate industrial handheld scanners, designed and engineered to withstand the toughest environmental conditions. The PowerScan PM9600 imagers feature an ultra-rugged design, an ergonomic shape with balanced weight to reduce operator fatigue during daily activities, and an intuitive aiming system that enables the highest first-pass read rate while reducing unnatural wrist movements.
The PowerScan 9600 wireless model improves operator efficiency and safety with Datalogic's STAR wireless system. Accurate power management ensures long battery life to always provide more than one shift of intensive scanning. The PowerScan 9600 scanner is equipped with Datalogic's wireless charging system. Based on inductive charging technology, Datalogic's wireless charging system eliminates battery contacts and pins, which often get dirty, bend or break over time – thus eliminating a major point of failure for devices used in industrial and retail functions.
The BC9600 base/charger is modular and available with multiple interface plug-ins for standard and industrial communication, such as RS232, USB, standard Ethernet, and industrial Ethernet protocols.


Special features
- Highest flexibility
- Ultra-rugged
- Best flexibility
- Balanced ergonomics


Applications
- Manufacturing
- Warehouse
- Logistics


Technical specifications:

Physical Characteristics
- Dimensions (H x L x W): 198 x 140 x 79mm
- Weight: PM9600-XX: 425g, PM9600-DXX: 445g, PM9600-DKXX: 455g

General
- Image sensor: 1280 x 800
- Light source: Aiming: 630 - 680 nm VLD, Illumination: White LED reading light
- Print contrast ratio: min. 15%
- Reading angle: Pitch: +/- 52°, Roll (tilt): 360°, Skew (yaw): +/- 52°
- Field of view: SR and HP: 38° H, 24° V
- Reading indicators: Beeper (adjustable tone and volume), Datalogic's 3GL technology (three green lights) for good read feedback, Datalogic's "green dot" on the code, two good read LEDs, vibration.
- Resolution: SR: 1R: 1D codes: 3 mil; 2D codes: 6 mil, HP: 1D codes: 2.5 mil; 2D codes: 4 mil
- Interfaces: RS232 / USB / Keyboard Wedge Multi-Interface / Ethernet and Industrial Protocols

Decoding Capability
- 1D/Linear codes: Automatically distinguishes all standard 1D codes, including linear GS1 DataBar codes.
- 2D codes: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot Code
- Postal codes: Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code (RM4SCC), Swedish Post
- Digital Watermarking: Digimarc barcodes (HP and DC models)
- Stacked codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites

Electrical
- Battery: Battery type: Lithium-ion: 3350mAh, Charging time at 12 VDC: 2.5 hours to charge to 95%, 3.2 hours to charge to 100%, External power supply. Reads per charge: 80,000
- Power: Charging (typical) < 15 W, Scanner only: 480 mA at 3.7 V (operating), Charging station only: 150mA at 5 V (operating)
- Input voltage: Host-powered: 5 VDC +/- 5% or 10 - 30 VDC, External power supply: 10 - 30 VDC +/- 5%

Reliability
- Protection class: IP67 and IP65
- Drop resistance: Withstands 50 drops from 2.5m height
- ESD protection (air discharge): 20 kV

Environmental Conditions
- Operating temperature: -20°C - 50°C
- Storage temperature: -40°C - 70°C
- Humidity: 0% - 95%, non-condensing

Safety & Certification
- Regulatory approvals: The product meets the required safety and regulatory approvals for
its intended use. For a complete list of certifications, please refer to the Quick Start Guide for this product.
- Environmental compliance: Complies with China RoHS, Complies with EU RoHS, Complies with R.E.A.C.H.
- Laser classification: Caution Laser Radiation - Do not stare into beam CDRH Class II, IEC 60825 Class 2
- LED classification: IEC 62471 Class: Exempt
