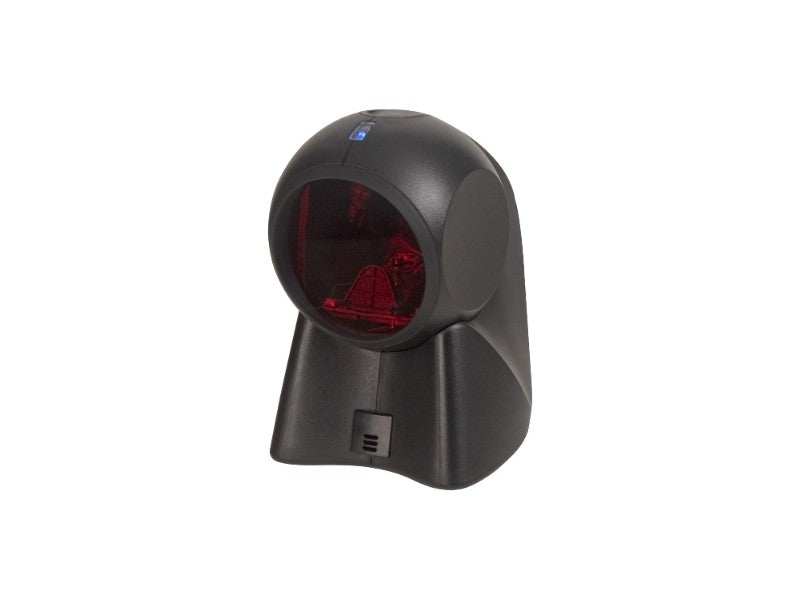

MS-7120 USB Orbit - Omnidirectional Handheld/Presentation Laser Scanner, USB KIT, black

Honeywell’s MS7120 Orbit® provides fast, omnidirectional scanning in an award-winning design for retailers looking for an affordable and aesthetically pleasing device.
The Orbit, the best-selling hands-free omnidirectional scanner, represents an innovative, elegant, and affordable solution that is advantageous for retail applications where limited counter space is a key criterion.
As a compact, lightweight, and stable device, the Orbit maximizes customer satisfaction and employee efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot, and a scan speed of 1,120 scans per second.
By allowing the scanner's firmware to be updated with Honeywell's patented (free) MetroSet®2 configuration software, long-term liabilities through the infrastructure are ensured in the event of a system or software change at the point of sale.
The Orbit has received several design awards, with its award-winning form enabling hands-on scanning of large, bulky items. For additional flexibility, the scan head can be tilted within a 30° range to adapt to objects of various sizes and shapes.
Standard features include user-replaceable cables, Honeywell's patented MetroSelect and MetroSet®2 for easy configuration and data editing, and OPOS/JPOS compatibility for easy installation.



Features
- Adjustable scan head
- Compact and stable
- Maximizes employee efficiency
- Innovative



Areas of Application
- Retail
- Point of Sale



Technical Specifications

Physical Characteristics
- Dimensions (L x W x H): 105 x 102 x 150mm
- Weight: 400g

General
- Light source: visible laser diode 650 nm +/- 10 nm
- Visual indicators: blue = ready to scan, white = good quality read
- Host system interfaces: USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Emulation
- Scan pattern: 5 fields of 4 parallel lines (omnidirectional)
- Scan speed: 1120 scan lines/sec.
- Print contrast: 35% min. reflectance difference
- Pitch, skew: 60°, 60°
- Decode capability: Standard 1D and GS1 DataBar symbologies

Electrical
- Input voltage: 5 VDC @ 0.25 V
- Power consumption (operating): 900 mW (180 mA @ 5 V)
- Power consumption (standby): 850 mW (170 mA @ 5 V)
- DC transformers: Class 2: 5.2 VDC @ 1 A
- Laser class: Class 1: IEC60825-1, EN60825-1
- Electromagnetic compatibility: FCC Part 15, IECS-003, EN55022 Class B

Reliability
- Drops: can withstand drops from a height of 1.2m
- Environmental sealing: sealed against airborne particulate contaminants

Environmental Conditions
- Operating temperature: 0°C - 40°C
- Storage temperature: -40°C - 60°C
- Humidity: 5% - 95%, non-condensing
- ESD protection: 15 kV
- Light level: 4842 Lux
