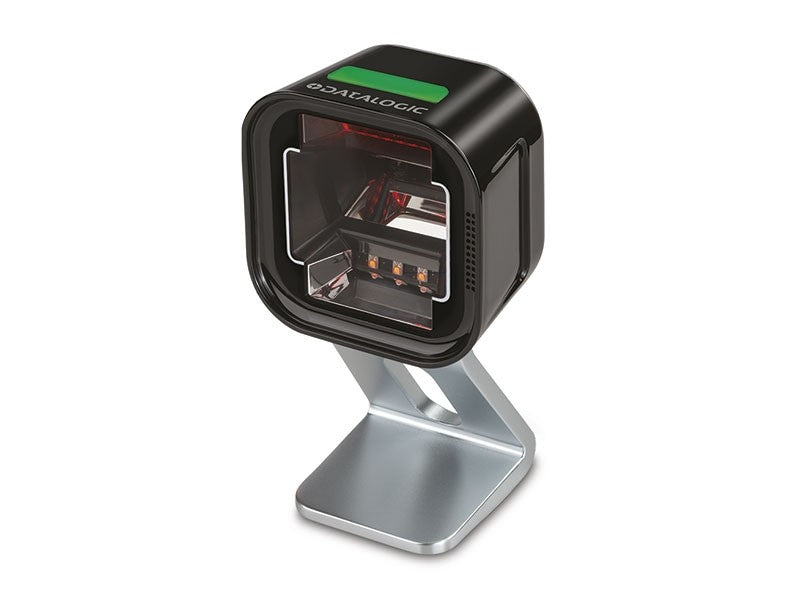

Magellan 1500i - 2D Presentation Scanner, USB-KIT, Tilt Stand, Black

The Magellan 1500i omnidirectional presentation scanner is a versatile and elegant addition to any point of sale. Featuring Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D barcodes – from printed product labels to mobile coupons, loyalty cards, tickets, and boarding passes.
The built-in adaptive illumination optimizes lighting conditions for superior operator comfort and high-performance swipe and presentation scanning.



Special Features:
- Space-saving
- Modern scanning technology
- Reliable and fast
- Excellent design



Areas of Application:
- Retail
- Services
- Healthcare



Technical Specifications:

Physical Characteristics
- Dimensions: 60 x 75 x 150mm (tilting stand), 60 x 75 x 106mm (stand)
- Weight: 240g (tilting stand)

Reading Performance
- Aiming: LED Aimer for precise scanning
- Image Capture: 1 MP, 1280 x 800 pixels, Graphic Formats: JPEG, BMP
- Print Contrast Ratio (min): 25%
- Reading Angle: Pitch: +/- 65°, Roll (Tilt): 0 - 360°, Skew (Yaw): +/- 75°
- Reading Indicators: Beeper (adjustable tone and volume), Datalogic 'Green Spot' good read feedback, good read LED
- Resolution (max): 0.130mm
- Interfaces: USB Keyboard, USB-COM, OEM (IBM) USB, RS232

Decoding Capability
- 1D / Linear Codes: Automatically discriminates all standard 1D codes including GS1 DataBar™ linear codes.
- 2D Codes: Aztec Code, Data Matrix, MaxiCode, QR Code
- Postal Codes: Australian Post, British Post, Canadian Post, Chinese Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC), Swedish Post
- Stacked Codes: GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, Micro PDF417, PDF4417
- Digital Watermarks: Optional support for Digimarc® Barcodes / GS1 DW Code

Electrical
- Operating: <500 mA
- Standby: <300 mA
- Input Voltage: 5 VDC +/- 10%

Reliability
- Protection Class: IP52
- Drop Protection: Withstands repeated drops from 1.2m onto a concrete surface

Environmental Conditions
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -40°C to 70°C
- Relative Humidity: 5% to 95%, non-condensing

Safety and Compliance
- Approvals: The product meets the necessary safety and regulatory approvals for its intended use. A full list of certifications can be found in the Quick Reference Guide for this product.
- Environmental Compliance: Complies with China RoHS; Complies with EU RoHS
- LED Classification: EN62471 and IEC62471 Lamp Illumination
