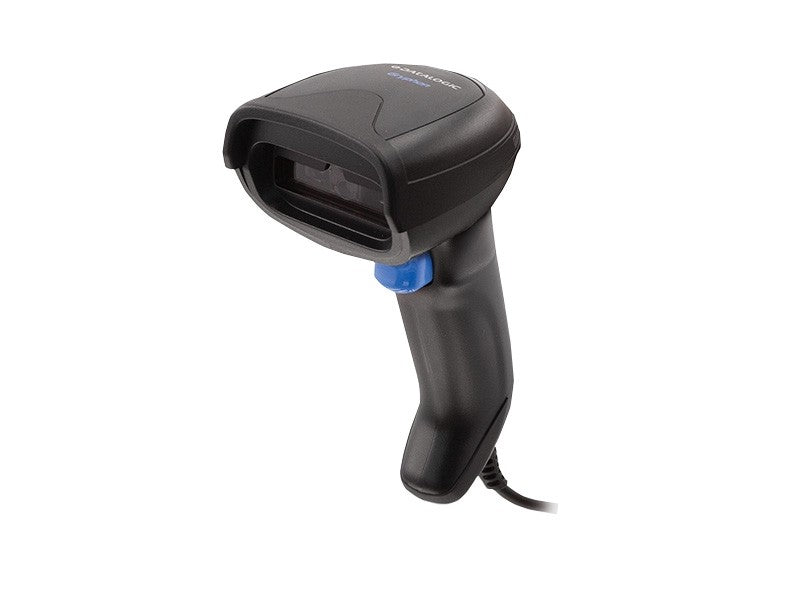

Gryphon I GD4220 - Corded Handheld Scanner, Linear Imager, USB-KIT, Black

The Gryphon 4200 series represents Datalogic's premium range of handheld scanners for general applications.
The Gryphon I GD4200 linear imager was specifically designed for people and features an elegant and trendy design, unchallenged ergonomics, and outstanding reading performance. The ability of the Gryphon I GD4200 readers to capture barcodes from near to far, read both high-density and low-resolution codes, decode hard-to-read, poor, or damaged codes, and easily read barcodes from mobile devices makes these readers the perfect choice for today's and tomorrow's applications.
Perfect for handheld reading, the Gryphon GD4200 Linear Imager uses Datalogic's Motionix motion-sensing technology, which recognizes the operator's natural actions and automatically switches the scanner to the readable scan mode.
The Gryphon I GD4200 linear imager offers fast reading performance for all common 1D codes.
In most work environments, scanners need to be regularly cleaned and disinfected. The Gryphon 4200 series utilizes disinfectant-ready enclosures designed for daily cleaning with harsh disinfectant solutions commonly used in healthcare.


Special features:
- Enhanced linear imaging technology
- Motionix motion-sensing technology
- Easy to use for maximum efficiency
- Peak productivity


Areas of application
- Retail
- Point of Sale
- Industry
- Warehouse


Technical specifications:

Physical characteristics
- Dimensions: 166 x 68 x 109 mm
- Weight: 163 g

General
- Image sensor: CCD Solid-State
- Light source: Illumination: Dual LED Array 612 - 630 nm
- Print contrast: 15%
- Read rate: 400 reads/sec.
- Reading angle: Pitch: 65°, Roll (Tilt): 45°, Skew (Yaw): 65°
- Resolution: 0.077mm
- Interfaces: GD4220: USB Type C/USB only, GD4290: USB Type C/USB/RS-232/Keyboard, Multi-interface

Decoding capabilities
- 1D/Linear Codes: Automatic recognition of all standard linear codes and linear GS1 DataBar codes

Electrical
- Current (operating): <350 mA at 5 V, <150 mA at 12 V.
- Current (standby): <60 mA at 5 V, <30 mA at 12 V.
- Input voltage: GD4220: 5 VDC +/- 5%, GD4290: 4.5 - 14.0 VDC

Reliability
- Protection class: IP52
- Drop protection: withstands multiple drops onto concrete from 1.8m height

Environmental conditions
- Operating temperature: 0°C - 50°C
- Storage temperature: -40°C - 70°C
- Humidity: 0% - 95%, non-condensing
- Ambient light: 0 - 130,000 Lux
- ESD protection (air discharge): 16 kV

Safety & Certification
- Regulatory approvals: The product has all necessary safety approvals for its intended use. The Quick Reference Guide contains a list of all approvals.
- Environmental compliance: complies with China RoHS, EU RoHS
- LED classification: Group according to IEC 62471
