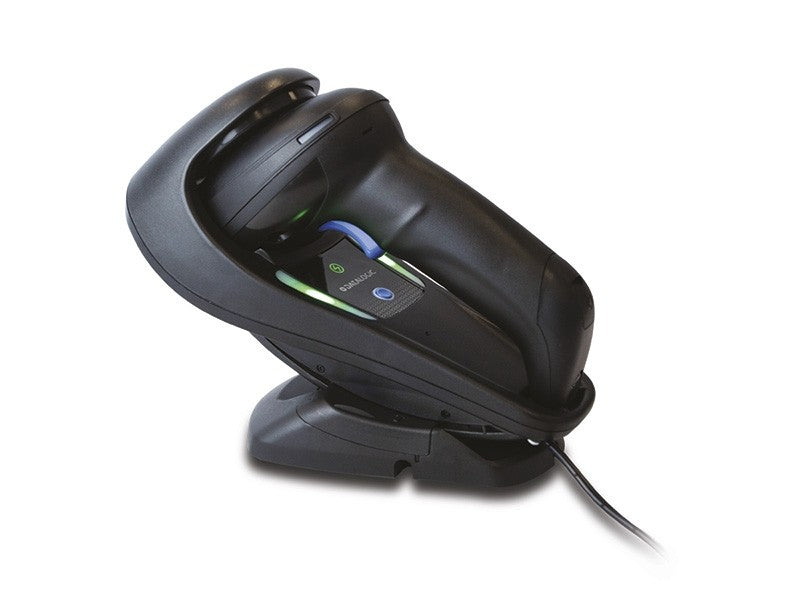

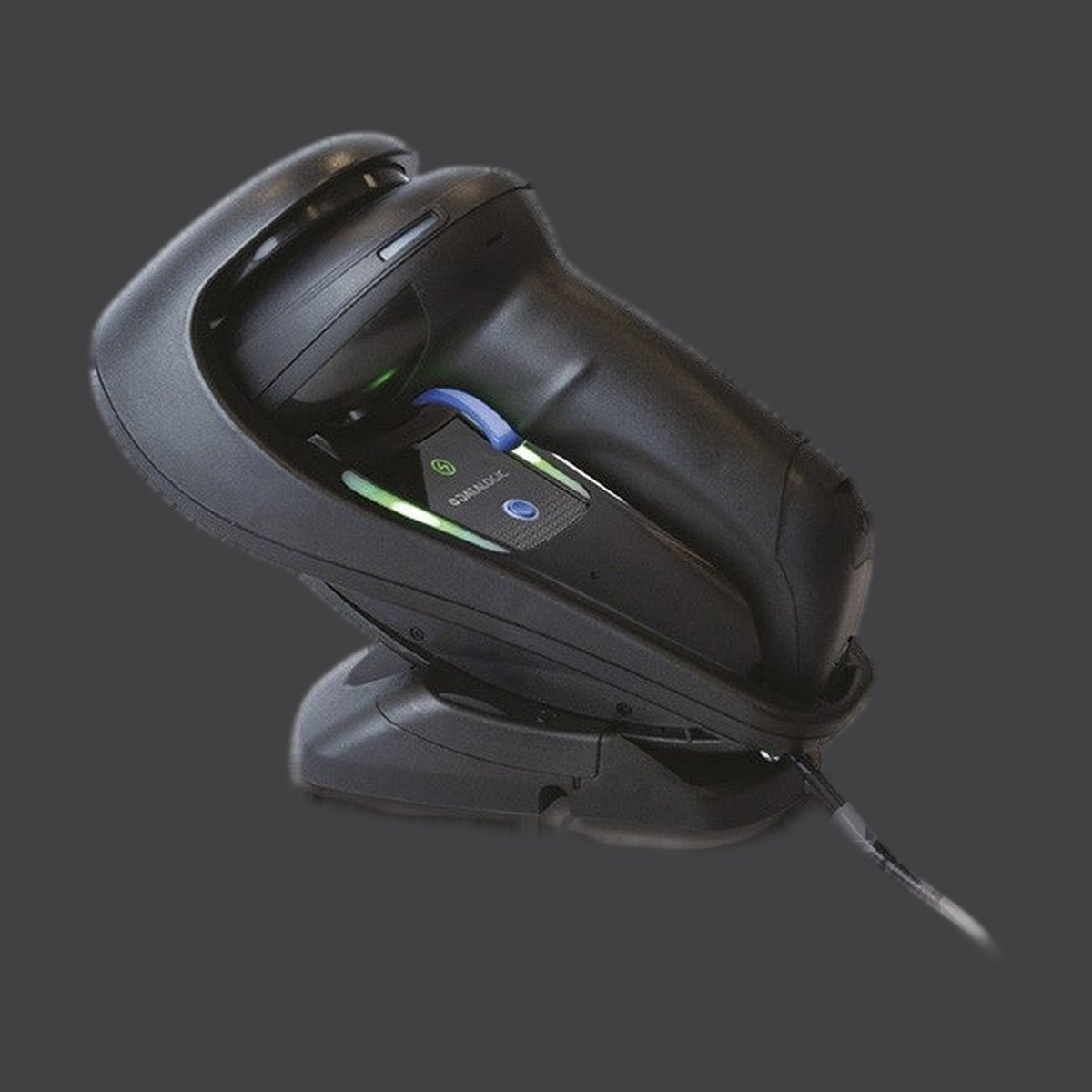

Gryphon GM4500 - Cordless 2D Barcode Scanner, 433 MHz, USB KIT with Charging/Transmission Base, black

2D imager with Bluetooth for 100m radio range, the scanner is charged contactlessly (inductively). It features an innovative 1 MP sensor with white illumination for strong reading performance. Special variants are optimized for capturing digital watermarks (Digimarc) and DPM codes. A highly visible 4-point aiming device and optics for higher motion tolerance ensure fast and intuitive scanning of 1D and 2D codes, as well as images and documents.



Features
- Wireless battery charging system
- 1 MP optics for superior scanning and DOF
- Green Spot technology
- Motion-sensing technology



Application Areas
- Retail
- Healthcare
- Access Control
- Transportation
- Entertainment
- Post offices, banks, administrations



Technical Specifications

Physical Characteristics
- Dimensions: 166 x 68 x 109mm
- Weight: 235g

General
- Image capture: BMP, JPEG, TIFF (graphic formats), 256, 16, 2 (grayscale)
- Image sensor: 1 Megapixel, 1280 x 800 pixels
- Motion tolerance: 35 IPS
- Print contrast: min. 15%
- Interfaces: RS232, USB, PS2

Decoding Capabilities
- 1D / Linear codes: automatic recognition of all standard 1D codes and linear GS1 DataBar™ codes
- 2D codes: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
- Postal codes: Australian Post, British Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
- Stacked codes: EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites

Wireless Communication
- Star Cordless System: Effective radiated power: 433.92 MHz: <6.3 mW, Multipoint configuration: max. readers per radio receiver: 16, Point-to-point configuration, Radio frequency: 433.92 MHz, 910 MHz, Two-way communication, Radio range (Open Air): 50m
- Bluetooth: Piconet: max. readers per radio receiver: 7, Profiles: SPP (Serial Port Profile), Protocol: Bluetooth 4.0 with BLE certified Class 1, Class 2 and Class 3, Radio frequency: 2.4 GHz, Radio range (Open Air): 100m, Security: Data encryption, Scanner authentication

Electrical
- Battery: Lithium-Ion 3250mAh
- Charging time: external power supply 4 hours at 12 VDC
- Readings per charge: 80,000
- Power consumption during charging: <6 W
- Input voltage: 4.5 - 14 VDC +/- 5%

Reliability
- Protection class: IP52
- Drop resistance: withstands multiple drops to concrete from 1.8m height

Environmental Conditions
- Operating temperature: 0°C - 50°C
- Storage temperature: -40°C - 70°C
- Humidity: 0% - 95%, non-condensing
- Light intensity: 0 - 100,000 Lux
- ESD protection: 16 kV

Safety & Compliance
- Official approvals: The product has all necessary safety approvals for its intended use. The Quick Reference Guide contains a list of all approvals.
- Environmental regulations: complies with China RoHS, EU RoHS
- Laser classification: Caution, laser light emitted - Do not stare into beam, IEC 60825 Class 2
