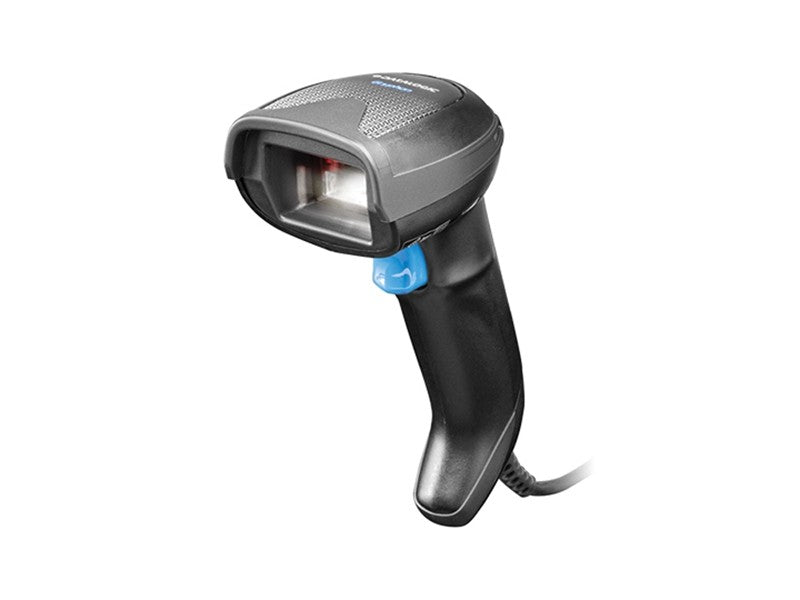

Gryphon GD4520 - 2D Imager, USB-KIT, black

The Gryphon™ 4500 series is the premium line in Datalogic's universal scanner segment. The new ergonomic design guarantees maximum user-friendliness. An innovative Mexapixel sensor with white illumination also ensures strong reading performance.
The Gryphon I GD4500 can be used as both a handheld and a presentation scanner. It is supported by Motionix™ technology, which automatically sets the appropriate scanning mode based on the user's movements. This technology works with and without the use of a stand. Both the aiming system and the sensor can be individually programmed. The white illumination is more pleasant for the human eye and also increases reading performance on colored labels. The clearly visible 4-dot aiming system defines a precise reading zone and reduces misreads, as the central aiming cross simplifies the capture of multiple barcodes one below the other.
The Gryphon I GD4500 is an omnidirectional imager that quickly and reliably captures 1D, 2D, postal, stacked, and composite codes such as PDF417, even from mobile devices. Special High Density (HD) models are available for capturing smaller, condensed codes. A version with red illumination has been developed for capturing digital watermarks. The improved optics also offer better motion tolerance and fast capture when codes are moved past at high speed.



Special features:
- Highest reading performance and depth of field
- Patented "Green Spot" technology
- Omnidirectional capture
- Motionix™ motion sensing technology



Areas of application
- Retail
- Simple production environment
- Healthcare
- Access control
- Transportation and entertainment industry
- Post offices, banks, public offices
- Utilities



Technical Specifications:

Physical characteristics
- Dimensions: 166 x 68 x 109mm
- Weight: 161g

General
- Image capture: Graphic formats: BMP, JPEG, TIFF, Greyscale: 256, 16, 2
- Image sensor: 1 Megapixel: 1280 x 800 pixels
- Light source: Red aiming laser 650 nm, Illumination: warm white, Hyper red LED for Digimarc
- Motion tolerance: 35 IPS
- Print contrast: min. 15%
- Reading angle: Pitch: +/- 65°, Roll (Tilt): 360°, Skew (Yaw): +/- 65°
- Reading indicators: Beeper (adjustable tone), Reading confirmation via Three Green Lights (3GL) & ‘Green Spot’ on the code, Dual "Good Read" LEDs
- Resolution: High Density (HD): 1D Linear: 0.077mm/3mils, PDF417: 0.077mm/3mils, Data Matrix: 0.102mm/4mils, Standard Range (SR): 1D Linear: 0.102mm/4mils, PDF417: 0.127mm/5mils, Data Matrix: 0.195mm/7.5 mils
- Typical depth of field: Minimum distance depends on symbol length and scan angle. Print resolution depends on contrast and ambient light.

Decoding performance
- 1D/Linear Codes: Captures all standard 1D codes including GS1 DataBar™ linear codes.
- 2D Codes: Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
- Postal Codes: Australian Post, British Post, Chinese Post, IMB, Japanese Post, KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
- Stacked Codes: EAN/JAN Composite, GS1 DataBar Composite, GS1 DataBar Stacked Extended, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composite
- Digital Watermarks: Digimarc Barcodes

Electronics
- Operation: <300 mA @ 5V, < 200 mA @ 12V
- Standby: < 90 mA @ 5V, <50 mA @ 12V
- Input voltage GD4520: 5 VDC
- Input voltage GD4590: 4.5 - 14.0 VDC

Reliability
- Protection class: IP52
- Drop resistance: withstands repeated drops from 1.8m onto concrete

Environmental conditions
- Operating temperature: 0°C - 50°C
- Storage temperature: -40°C - 70°C
- Humidity: 0% - 95%, non-condensing
- Ambient light: 0 - 100,000 Lux
- ESD protection: 16 kV

Safety & Certification
- Official approvals: The product has all necessary approvals for its intended use. The Quick Reference Guide contains a list of all approvals.
- Environmental regulations: complies with China RoHS and EU RoHS
- Laser class: Caution: Laser radiation – do not stare into beam: IEC 60825 Class 2
