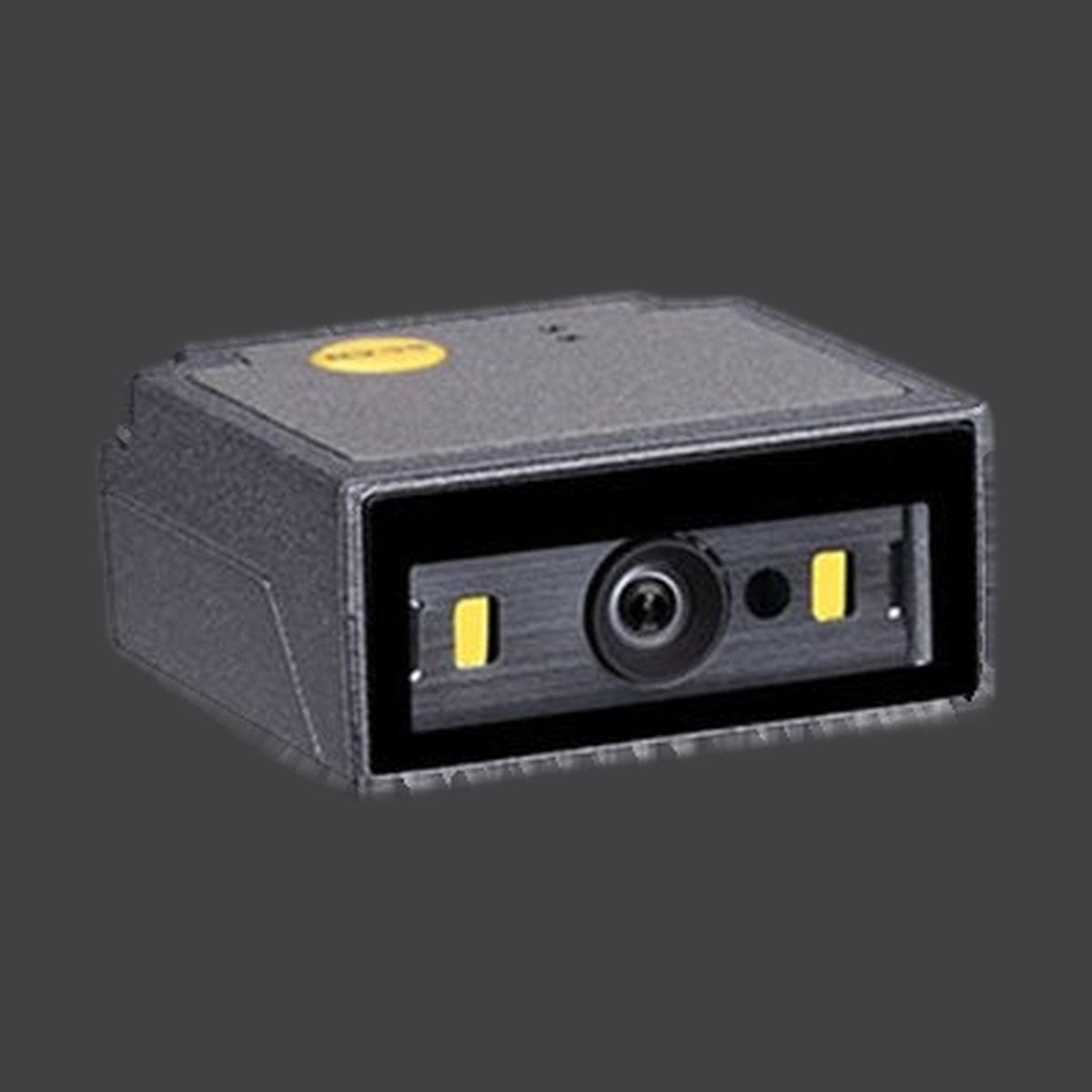

AS-2320-HD - 2D High-Density Embedded Barcode Scanner in Metal Housing (Die-Cast Zinc Alloy) with USB Connection

The ARTDEV AS-2320-HD is a robust, universally applicable barcode scanner in a metal housing. Due to its small dimensions, it is particularly suitable for installation in access control systems or inspection systems. Its Imager HD optics effortlessly scan all known 1D barcodes as well as 2D stacked codes. Data transmission takes place via a USB connection cable.



Features
- 2D imager HD optics
- Minimal dimensions
- Robust metal housing



Areas of application
- Retail
- Industry
- Kiosk



Technical Specifications

Physical Characteristics
- Dimensions (W x H x D in mm): 43 x 19 x 46
- Weight: 68g (without cable)
- Housing: Metal

General
- 2D Resolution: 1280 x 800 pixels
- Reading distance: up to 38cm
- Barcode recognition: 45° horizontal, 28° vertical
- Scan angle: +/- 70° (yaw), +/- 72° (pitch), 360° (roll)
- Print contrast: Min. 20%
- Scan trigger: Trigger, Automatic detection, Command
- Interfaces: USB, USB-COM
- Input voltage: 3.4 - 5.5 VDC

Reliability
- Protection class: IP51
- Drop protection: Withstands multiple drops from 1.5m onto concrete
- Ambient light: 100,000 Lux
