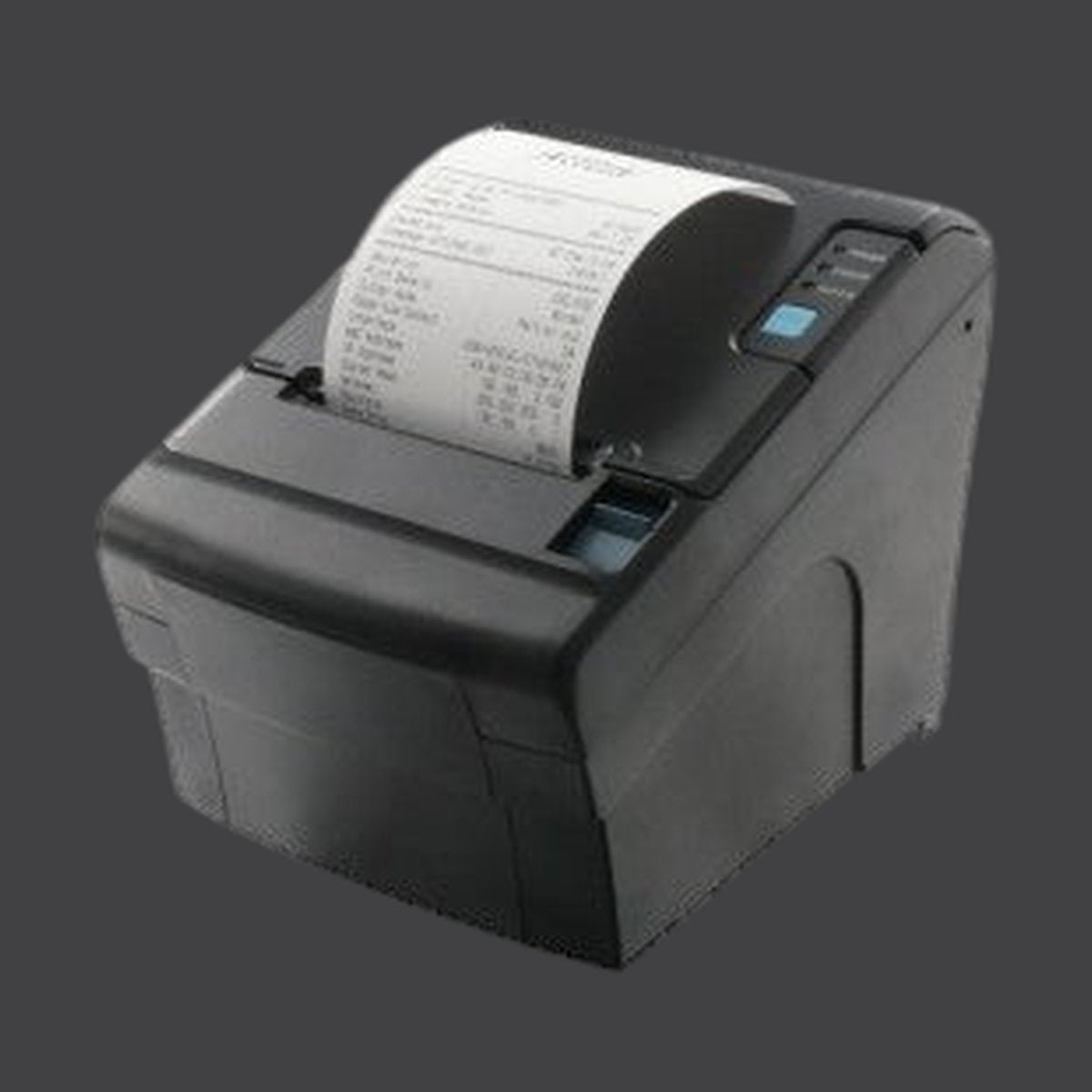

AP-8220-W - Thermal Receipt Printer, 80mm, USB + WIFI (WLAN interface exchangeable), black

The ARTDEV AP-8220 thermal receipt printer series is the next step in a line of robust, reliable, and high-performance POS printers that began with the popular AP-8150 series. With the AP8220-USE, a model has been released that already features the three well-known connection options: USB, Serial (RS232), and Network (Ethernet). Thanks to the three integrated connection options (USB, RS232, and Ethernet), the AP-8220-USE is the ideal receipt printer for applications with various connectivity requirements. Additionally, it eliminates extra costs when changing interfaces, for example, due to a new POS system.



Features:
- Fast and quiet
- Integrated standard USB port
- Robust design
- Reliable and high-performance



Areas of application:
- Retail
- Point of Sale



Technical specifications:

Physical Characteristics
- Dimensions (W x D x H): 152 x 202 x 150mm
- Weight: 1.7kg

Printer
- Print method: Thermal direct
- Print speed: 220mm/sec.
- Resolution: 180dpi (Horizontal/Vertical)
- Dot pitch: 0.141 x 0.141mm
- Interface: USB or USB+RS232+Ethernet
- Emulation: ESC/POS

Mechanics
- Number of characters: 42 (Font A 12x24), 56 (Font B 9x24)
- Print direction: Unidirectional
- Print width: 72mm, 512 dots/line
- Cutter: Integrated
- Sensors: Paper end, low paper
- Barcode: EAN-8, EAN-13, Code 39/93/128, ITF, UPC-A, CODABAR, PDF-417 (2D)

Consumables
- Paper type: Thermal paper
- Paper width: 50 - 82.5mm
- Paper thickness: 0.06 - 0.09mm
- Roll diameter: max. 80mm
- Inner roll diameter: 12.5mm +/- 0.05mm

Environmental Conditions
- Operating temperature: 5°C to 40°C
- Storage temperature: -20°C to 60°C
- Relative humidity: 10% to 90% (non-condensing)
